FOUNTAIN LIGHTS



Fountain Lights - B4TB1257

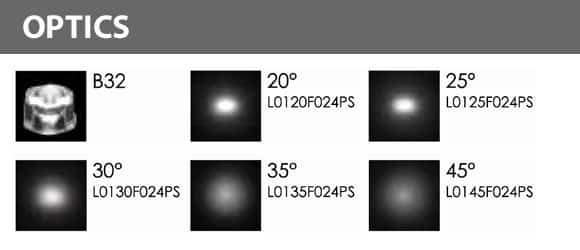

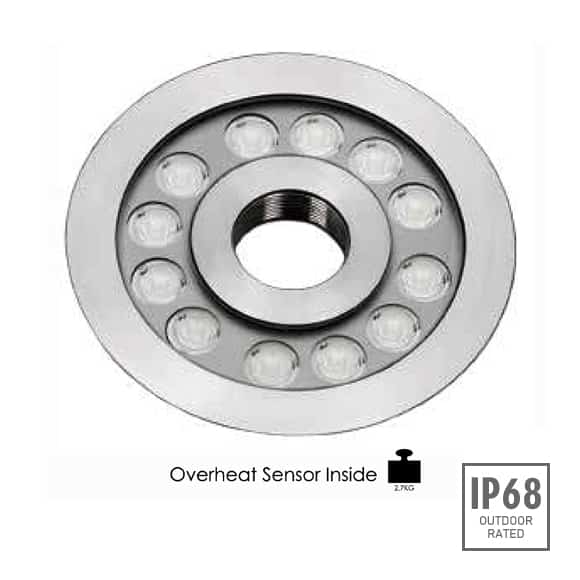

High quality Fountain lights with chrome plated stainless steel housing and 10mm tempered glass. The lens options are 20, 25, 30, 35, & 45 degree depending on the lighting effect. These light fixtures come with ingress protection of IP68 with a built in overheat sensor system. Color temperature of 2000k/3000k & 6000k with Triac, PWM, 1-10V & Dali dimming.
These outdoor lights enhance the beauty of the water movement and create Infinite architectural lighting solutions. In daylight, we are not able to see the real beauty of the fountain but LED lights is a perfect way to bring a character to any fountain. Color changing (RGB) and dimming lights with different combinations can be used to create beautiful lighting effects.
Some of the highlights are as follows:
Material Specifications: B4TB1257
- Front cover & Housing:
- Hard chromeplated molding shaped stainless steel SUS 316#
- Light Window:
- Step Tempered glass. T=10mm
- Gasket:
- Silicon Gasket
- LED Driver:
- Constant Voltage Input, Constant Current Output
- PCB:
- Excellent heat conductivity aluminium, coefficientof heat Conductivity ≥2.0w/mk
- Power Cable:
- 24V : H07RN-F 2X1.0mm2 L=3.0m
- Application Environment:
- Temperature of water between -20⁰C~40⁰C less than 1 Mtr Depth
- CCT:
- 2000K/3000K/6000K
- Dimmable Support:
- Triac PWM 1-10V Dali
TECHNICAL DATA
Model# | Light Source | LENS | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|
B4TB1257 | 12x2W | B32 | 25⁰ | 24V DC | 24V=1200 | 24V=28.8 | Cool White=2067 | Warm White=1610 | 09 |


IP68 WATERPROOF CONNECTORS




Stainless Steel Fountain Light are a basic factor when enhancing all their beauty and attractiveness. A good submersible led lights configuration can highlight some features of a fountain that would go unnoticed without it, especially when there is not natural or environmental lighting. These underwater led lights can help achieve decorative effects for various kinds of fountain design. Our fountain lights are rated for 50,000 hours of use.
Designing an underwater lighting scheme for a fountain or pond fountain with lights can be a challenge. There are many factors to consider, such as the type of fixture, the color of light, and the effects you want to create. One important decision is whether to use RGB (red, green, blue) LED lights or traditional incandescent bulbs.
Similar Products : Swimming Pool Lights
Not only do they look beautiful, but underwater pond lights can also help improve visibility and safety around the area. Underwater lights are a great option as they’re energy-efficient and long-lasting. Fountain lights are a popular way to enhance any external area. These submersible lights are available in RGB/RGBW variants and can be controlled by DMX decoders and controllers. Architects and landscape experts prefer to use LED light control systems. There are even sophisticated control systems that allow you to time how the lights go on and off. This is perfect for fountain light shows.
When it comes to choosing the right Stainless Steel Fountain Light , there are a few things you need to take into account. First, you need to decide what kind of effect you want to achieve. Do you want to highlight the fountain with a spotlight? Or would you prefer a more subtle look using recessed lighting? Pool lights can be placed along the interior walls of the fountain or on the floor area. A central ejective Stainless Steel Fountain Light can also give a beautiful effect to the water. And if you want even more control over the look of your fountain, you can use a DMX controller with dimming drivers.
Stainless Steel Fountain Light fixtures come with ingress protection of IP68 with a built-in overheat sensor system. Color temperatures of 2000K/3000K & 6000K are available with Triac, PWM, 1-10V & Dali dimming support. These outdoor lights enhance the beauty of the water movement and create Infinite architectural lighting solutions.
