UNDERWATER LIGHTS

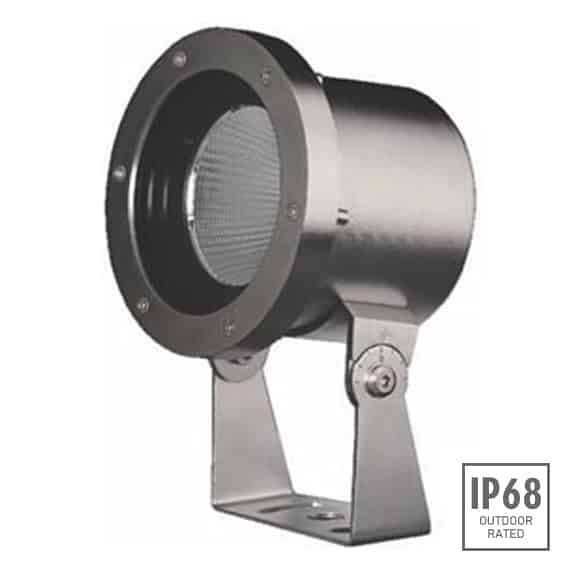

Underwater Lights - R5YA0169
Underwater lights surface mounted for waterbodies and application which is already existing and had not made provision for lights to be recessed. The fixtures are of high grade stainless steel 316 material with NICHIA and CREE LEDs. With 24VDC the lumen output is high. A narrow and wide beam optics are standard options to chose. Normal color temperatures for underwater lights is 2000K, 3000K and 6000K. RGB and RGBW is also possible with DMX control system.
Some of the high lights are as follows:
Material Specifications: R5YA0169
- Front cover & Housing:
- Hard Cromeplated Molding Shaped Stainless Steel SUS 316L#
- Light Window:
- PMMA 8mm
- Gasket:
- Silicon Gasket
- LED:
- NICHIA
- Reflector:
- Optical Reflector, efficiency ≥285%
- LED Driver:
- Constant Voltage Input, Constant Current Output
- PCB:
- Excellent heat conductivity aluminium, coefficientof heat Conductivity ≥2.0w/mk
- Power Cable:
- 24V : H07RN-F 2X1.0mm2 L=3.0m
- Application Environment:
- Temperature of water between -20⁰C~40⁰C less than 1 Mtr Depth
- CCT:
- 3000K/6000K
TECHNICAL DATA
| Model# | Light Source | LENS | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|---|---|
| R5YA0169 | 1x16W | R18 | 22⁰ | 24V DC | 24V=700 | 24V=17 | Cool White=1344 | Warm White=1183 | 08 |
IP68 WATERPROOF CONNECTORS
