UNDERWATER LIGHTS

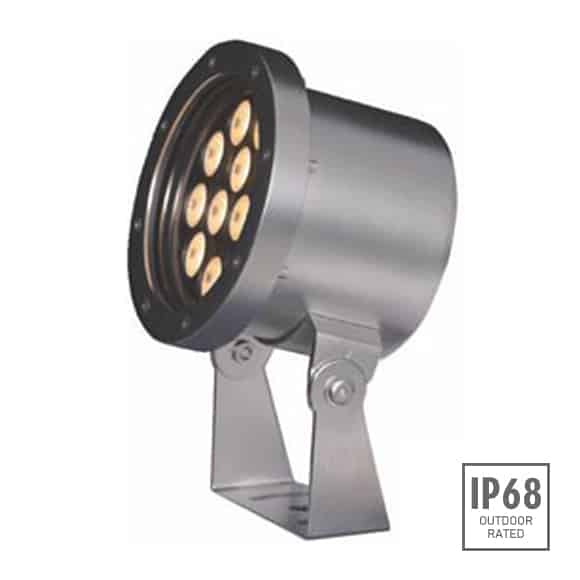

Underwater Lights - B5ZA1258
Underwater lights surface mounted for waterbody applications, to highlight a structure inside water. The fixtures are of high grade stainless steel 316 material, suitable for places near salt-water. NICHIA and CREE LED source is used in underwater lights. The lifespan for the fixtures is above 50,000Hrs. With 24VDC the lumen output is high. A narrow and wide beam optics are standard options to chose. Normal color temperatures for underwater lights is 2000K, 3000K and 6000K. RGB and RGBW is also possible with DMX control system.
Some of the highlights of the products are as follows:
Material Specifications: B5ZA1258
- Front cover & Housing:
- Hard Cromeplated Molding Shaped Stainless Steel SUS 316L#
- Light Window:
- PMMA 8mm
- Gasket:
- Silicon Gasket
- LED:
- NICHIA
- LED Driver:
- Constant Voltage Input, Constant Current Output
- PCB:
- Excellent heat conductivity aluminium, coefficientof heat Conductivity ≥2.0w/mk
- Power Cable:
- 24V : H07RN-F 2X1.0mm2 L=3.0m
- Application Environment:
- Temperature of water between -20⁰C~40⁰C less than 1 Mtr Depth
- CCT:
- 2000K/3000K/6000K
- Dimmable Support:
- Triac PWM 1-10V Dali
TECHNICAL DATA
| Model# | Light Source | LENS | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|---|---|
| B5ZA1258 | 12x3W | B33D | 30⁰ | 24V DC | 24V=1600 | 24V=38.4 | Cool White=3031 | Warm White=2668 | 08 |
IP68 WATERPROOF CONNECTORS
High Wattage Underwater Light. IK08 & IP68 rating, 12x3W, Triac/PWM/1-10V/Dali dimming, optional tripod available. The fixtures are of high grade stainless steel 316 material, suitable for places near salt-water. NICHIA and CREE LED source is used in underwater lights. The lifespan for the fixtures is above 50,000Hrs. With 24VDC the lumen output is high. A narrow and wide beam optics are standard options to chose. Normal color temperatures for these lights is 2000K, 3000K and 6000K. RGB and RGBW is also possible with DMX control system. 8MM PMMA diffuser, 12x3W, IK08 & IP68 rating, Triac/PWM/1-10V/Dali dimming.
Check our range of outdoor lights: LED inground Light Switzerland
High Wattage Underwater Light spotlight is also a beautiful choice for lighting up pools. These fixtures are available with tripod or surface mounting accessories to achieve the desired lighting effect. LED underwater pool light not only adds a touch of ambiance, but also highlights any special features like fountains and waterfalls.
In addition to pool lights, you may also want to consider installing some landscape lighting. This will help make sure getting to the pool is just as safe as getting into it. If you’re looking for a light that will last, our pool lights for above ground pools are a perfect solution. They have an LED lifespan of 50,000 hours. You’ll be able to enjoy your lights around the pool elegantly lit for many evenings to come without worrying about the cost of electricity.
Swimming pool lights are a complete necessity when it comes to any pool installation. From safety, to practicality, to pure enjoyment, they are sure to make any backyard swim a memorable and long-lasting experience. All the lights for pools are made of premium components and we carry only the highest quality products so that you can rest assured your investment will last. With our wide selection of swimming pool lights, you’re sure to find the perfect fit for your needs. High Wattage Underwater Light – Submersible led poollight for underwater lighting projects worldwide. The lights are made of SS316 material to make it rust or corrosion free. High powered LED chips are used as a light source in these submersible led lights. Standard color temperature and beam angles for swimming pool lights are 2000K, 3000K and 6000K with lens 9º, 15º, 20º, 30º, 45º and 60º. Wattages start 2W upwards to 45W. The underwater fixtures can also be provided with RGB/W color changing LED with DMX control systems.
