Linear Wall Grazer



Linear Wall Grazer - S6Q1057 | S6Q2057
Linear wall grazer for facade lighting system. High grade OSRAM LED with DALI dimming option for exterior home illumination. Adjustable clamps and accessories are SS316 to protect the fixture from corrosion. Wall washers evenly light up large areas and enhance the architecture. They are one of the best choices for facade lighting system.
These fixtures are also available in RGB/RGBW/mono color and can light up historic monuments or residential buildings. One can also use these DMX controllers to create multiple light patterns using RGB/ RGBW colors. For a focused, bright effect the fixture should be placed closer to the wall. Architects and lighting designers use wall washer fixtures for various high end outdoor lighting projects.
Some of the highlights are as follows:
Material Specifications S6Q1057 | S6Q2057
- Housing:
- Extruded aluminium, Powder coated
- Lens:
- Optical lens, efficiency≥85%
- Light Window:
- Tempered glass T=3mm
- Cable Gland:
- IP68 PG-9 PA66
- Gasket:
- Glass and housing are silicon sealed
- LED:
- OSRAM or NICHIA
- Operating Temperature:
- -20⁰C-40C⁰
- Bracket:
- 12# Die-casting powder coated aluminium
- Power Cable:
- 2XH05RN-F 2X1.0mm2 L=0.5m (Low Voltage) 2XH05RN-F 3X1.0mm2 L=0.5m (High Voltage)
- CCT:
- 2000K/3000K/6000K
- Dimming Support:
- Triac PWM 1-10V Dali
TECHNICAL DATA

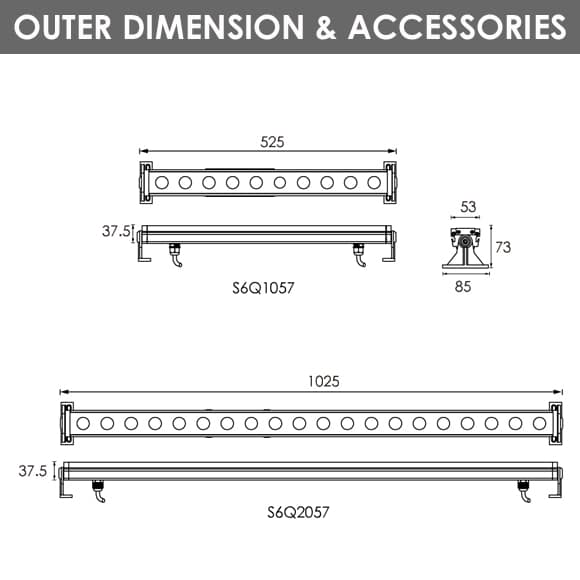

Model# | Light Source | LENS | Lens Degree | Length(MM) | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|---|
S6Q1057 | 10x2W | B13 | 10⁰x35⁰ | 525 | 24V | 120V | 240V | 24V=1041 | 120V=174 | 240V=92 | 24V=25 | 120V=20.8 | 240V=20.8 | Cool White = 1840 | Warm White = 1510 | 05 |
S6Q2057 | 20x2W | B13 | 10⁰x35⁰ | 1025 | 24V | 120V | 240V | 24V=2056 | 120V=374 | 240V=202 | 24V=50 | 120V=41 | 240V=42 | Cool White = 3580 | Warm White = 2945 | 05 |


IP68 WATERPROOF CONNECTORS




Linear wall grazer
Linear wall grazer for facade lighting system. High grade OSRAM LED with DALI dimming option for exterior home illumination. Wall washing illuminates a vertical surface with uniform brightness and draws attention to the outdoor wall. It can also accentuate an entrance, fireplace, or artwork.
Spacing between the Asymmetric Linear Wall Washer and the surface helps to determine the level of brightness. For a focused, bright effect the fixture should be placed closer to the wall. Wall washers with high wattages can also light up buildings up to 50 floors high. The purpose of wall washers is to illuminate vertical surfaces and they also enhance the architecture.
It also helps in highlighting the details and textures on a structure or wall and gives a modern look to the lighting space. Wall washers are also available with in-built drivers & built-in DMX decoders for easy installation and DMX controls. One can also use these DMX controllers to create multiple light patterns using RGB/ RGBW colors.
The most popular reason to use an outdoor LED wall washer is to illuminate an architectural facade – typically lighting facades of skyscrapers & city skylines. These fixtures are also available in RGB/RGBW/mono color and can light up historic monuments or residential buildings.
