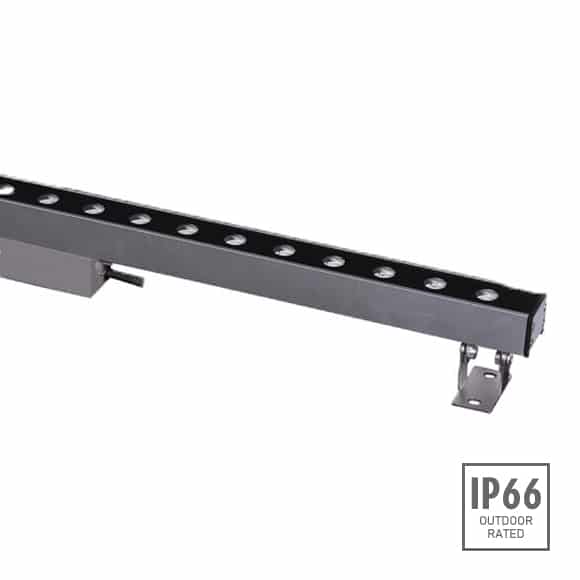

Asymmetric Wall Wash Linear
Asymmetric Wall Wash Linear - S6KC1257 | S6KC2457
Asymmetric wall wash linear for world class commercial lighting, art lighting, landscape night lighting and wall wash light effect. The most popular reason to use an outdoor LED wall washer is to illuminate an architectural facade. These can also include skyscrapers & city skylines. Body material used is aluminium die-cast in powder coated colors of sanded grey, black and silver.
If you're looking for a way to add some extra light and interest to your home's exterior, consider outdoor wall washers. Color temperatures available are 2000K, 3000K and 6000K. RGB and RGBW can also be provided along with DMX controls. Architects and lighting designers use wall washer fixtures for various high end outdoor lighting projects.
Some of the highlights are as follows:
Material Specifications S6KC1257 | S6KC2457
- Housing:
- Extruded aluminium anodized finishing or Powder coated
- Lens:
- Optical lens, efficiency≥85%
- Light Window:
- Tempered glass T=4mm
- Cable Gland:
- IP68 PG-9 PA66
- Gasket:
- Glass and housing are silicon sealed
- LED:
- OSRAM
- Operating Temperature:
- -20⁰C-40C⁰
- Bracket:
- Hard Chrome plated stainless steel SUS 304#
- Power Cable:
- H05RN-F 2X1.0mm2 L=0.5m (low voltage)
- CCT:
- 2000K/3000K/6000K
TECHNICAL DATA
| Model# | Light Source | LENS | Lens Degree | Length(MM) | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|---|---|---|
| S6KC1257 | 12x1.5W | B27 | 10⁰x30⁰ | 493 | 120V | 240V | 120V=203 | 240V=105 | 120V=24.4 | 240V=24 | Cool White = 2358 | Warm White = 1838 | 05 |
| S6KC2457 | 24x1.5W | B27 | 10⁰x30⁰ | 973 | 120V | 240V | 120V=414 | 240V=212 | 120V=48 | 240V=48.3 | Cool White = 4912 | Warm White = 3742 | 05 |
IP68 WATERPROOF CONNECTORS
Asymmetric wall wash linear
Asymmetric wall wash linear for world class commercial lighting, art lighting, landscape night lighting and wall wash light effect. Wall washing illuminates a vertical surface with uniform brightness and draws attention to the outdoor wall. It can also accentuate an entrance, fireplace, or artwork.
The most popular reason to use an outdoor LED wall washer is to illuminate an architectural facade. These can also include skyscrapers & city skylines. These fixtures are available in RGB/RGBW/mono color and are often used to light up historic monuments, government buildings and railway stations.
If you’re looking for a way to add some extra light and interest to your home’s exterior, consider outdoor wall washers. These fixtures evenly illuminate large vertical surfaces and also add a touch of drama to the architecture.
It also helps in highlighting the details and textures on a structure or wall and gives a modern look to the lighting space. Wall washers are also available with in-built drivers & built-in DMX decoders for easy installation and DMX controls. They can also create beautiful effects for landscape night lighting and art lighting.
