Exterior Linear Wall Washer

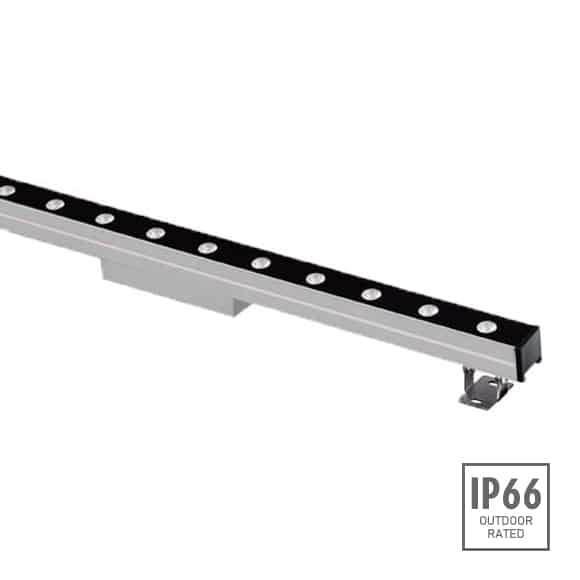

Exterior Linear Wall Washer - S6JC1235 | S6JC2435
Exterior linear wall washer for hotel facade architecture, modern light fittings, bridge landscape lighting and wall grazing. 12/24W LED and IP66 protection with beam angle of 10⁰*33⁰. Body material used is aluminium die-cast in powder coated colors of sanded grey, black and silver. Adjustable clamps and accessories are SS316 to protect the fixture from corrosion.
One can also use DMX controls to create infinite lighting effects for bridge landscape lighting and wall grazing effect. Color temperatures available are 2000K, 3000K and 6000K. RGB and RGBW can also be provided along with DMX controls. Architects and lighting designers use wall washer fixtures for various high end outdoor lighting projects.
Some of the highlights are as follows:
Material Specifications S6JC1235 | S6JC2435
- Housing:
- Extruded aluminium anodized finishing or Powder coated
- Lens:
- Optical lens, efficiency≥85%
- Light Window:
- Tempered glass T=3mm
- Gasket:
- Glass and housing are silicon sealed
- LED:
- OSRAM
- Operating Temperature:
- -20⁰C-40C⁰
- Bracket:
- Hard Chrome plated stainless steel SUS 304#
- Power Cable:
- H03VV-F 2X0.75mm2 L=0.25m (low voltage)
- CCT:
- 2000K/3000K/6000K
- Dimmable Support:
- Triac PWM 1-10V Dali
TECHNICAL DATA

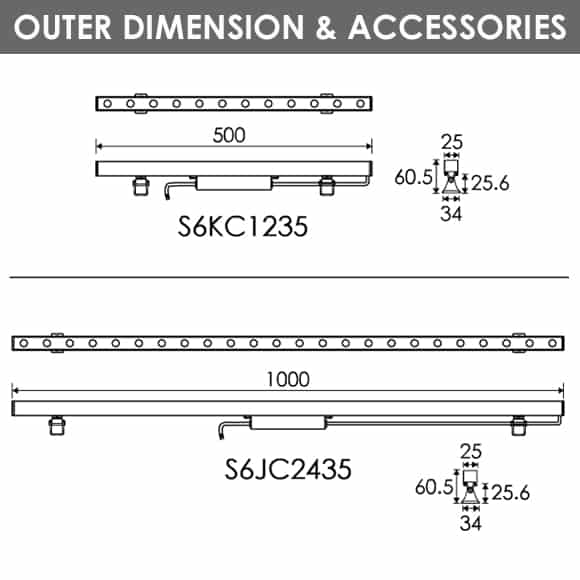

| Model# | Light Source | LENS | Lens Degree | Length(MM) | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|---|---|---|
| S6JC1235 | 12x1W | B15 | 10⁰x33⁰ | 500 | 120/240V | 120V = 130 | 240V = 65 | 120V = 15 | 240V = 15 | Cool White = 1080 | Warm White = 864 | 02 |
| S6JC2435 | 24x1W | B15 | 10⁰x33⁰ | 1000 | 120V/240V | 120V = 295 | 240V = 163 | 120V = 35 | 240V = 35 | Cool White = 2140 | Warm White = 1976 | 02 |
IP68 WATERPROOF CONNECTORS
Exterior linear wall washer
Exterior linear wall washer for hotel facade architecture, modern light fittings, bridge landscape lighting and wall grazing. Aluminium body die-casted in powder coated colors of sanded grey, black and silver. Adjustable clamps and accessories are SS316 to protect the fixture from corrosion. Color temperatures available are 2000K, 3000K and 6000K. RGB and RGBW can also be provided along with DMX controls. Application of these fixtures can be in building facades, highlighting a structure or pillar & various outdoor lighting projects.
It also helps in highlighting the details and textures on a structure or wall and gives a modern look to the lighting space. Wall washers are also available with in-built drivers & built-in DMX decoders for easy installation and DMX controls.
High Grade Wall Washers for lighting facades of skyscrapers, historic monuments, government buildings, railway station, airports and other city skylines with RGB/RGBW/mono color. Wall washing illuminates a vertical surface with uniform brightness and draws attention to the outdoor wall, and can be used to accentuate an entrance, fireplace, or artwork.
