Linear Wall Washer
Linear Wall Washer - B6IB0654 | B6IB1234 | B6IB2434
Linear wall washer for exterior LED linear lighting, wall grazing lighting, modern house facade and architectural building lighting. Beam angles offered are 30 and 40 degree. Body material used is aluminium die-cast in powder coated colors of sanded grey, black and silver. Adjustable clamps and accessories are SS316 which protect the fixture from corrosion.
Wall washing illuminates a vertical surface with uniform brightness and draws attention to the outdoor wall, and can also accentuate an entrance, fireplace, or artwork. Color temperatures available are 2000K, 3000K and 6000K. RGB and RGBW can also be provided along with DMX controls. Architects and lighting designers use Linear wall washer for various high end outdoor lighting projects.
Some of the highlights are as follows:
Material Specifications B6IB0654 | B6IB1234 | B6IB2434
- Housing:
- Aluminium Extrusion #6061, finish: Anodized or Painting
- Bracket:
- Nylon rotatable type bracket or stainless steel angle fixed type bracket
- Light Window:
- Tempered glass T=2mm2 with printing
- Cable gland:
- Copper PG-7 IP65
- Power Cable:
- H03VV-F 2X0.75mm2 L=20cm with plug/socket connector MAX Capacity of current=5A
- CCT:
- 2000K/3000K/6000K
- Dimmable Support:
- Triac PWM 1-10V Dali
TECHNICAL DATA

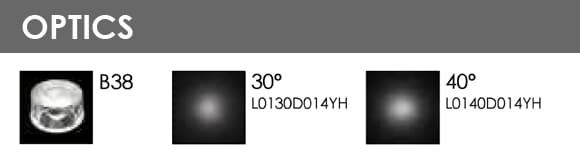

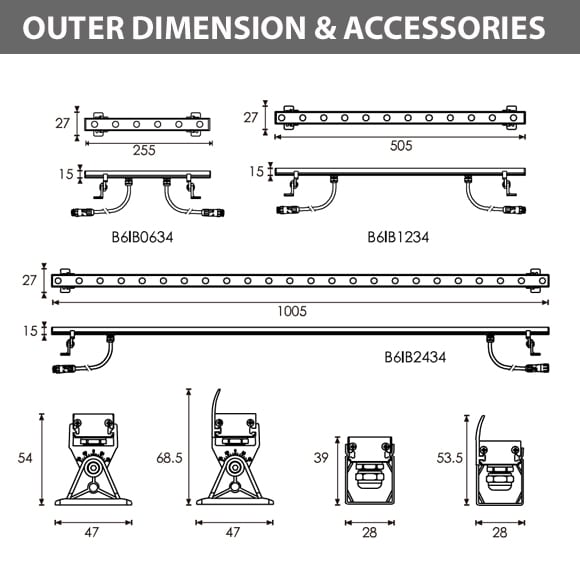

| Model# | Light Source | LENS | Lens Degree | Length(MM) | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|---|---|---|
| B6IB0634 | 6x0.5W NICHIA | B38 | 40⁰ | 255 | 24V DC | 24V=152 | 24V=3.6 | Cool White = 320 | Warm White = 289 | 05 |
| B6IB1234 | 12x0.5W NICHIA | B38 | 40⁰ | 505 | 24V DC | 24V=305 | 24V=7.3 | Cool White = 557 | Warm White = 510 | 05 |
| B6IB2434 | 24x0.5W NICHIA | B38 | 40⁰ | 1005 | 24V DC | 24V=611 | 24V=14.7 | Cool White = 1114 | Warm White = 1020 | 05 |
IP68 WATERPROOF CONNECTORS
Linear wall washer
Linear wall washer for exterior LED linear lighting, wall grazing lighting, modern house facade and architectural building lighting. These are slim lights with different wattages, beam angles and color temperatures. Wattage starts from 6W to maximum of 48W. Beam angles offered are 30 and 40 degrees. Body material used is aluminium die-cast in powder coated colors of sanded grey, black and silver. Adjustable clamps and accessories are SS316 to protect the fixture from corrosion.
Color temperatures available are 2000K, 3000K and 6000K. RGB and RGBW can also be provided along with DMX controls. Architects and lighting designers use wall washer fixtures for various high end outdoor lighting projects. Product & Manufacturing process certifications include UL, CUL, SAA, TUV, CE, BIS, ISO-9001 & ISO -14005. They are also available in 50+ designs. High-quality architectural linear Slim Wall Washers fixtures & solution at economical prices & 3 years warranty.
Wall washing illuminates a vertical surface with uniform brightness and draws attention to the outdoor wall, and can also accentuate an entrance, fireplace, or artwork. Also available with P65, IP66, IP67 rating with mono or multi-color LED for lighting projects. Wattages start from 6W to a maximum of 120W. Standard beam angles offered are narrow to wide beams from 9, 12, 15, 20, 24, 40, 60. wall wash asymmetric beam angle of 10*30 and 15*32 can be provided as well.
