OUTDOOR LINEAR FACADE WALL WASHER

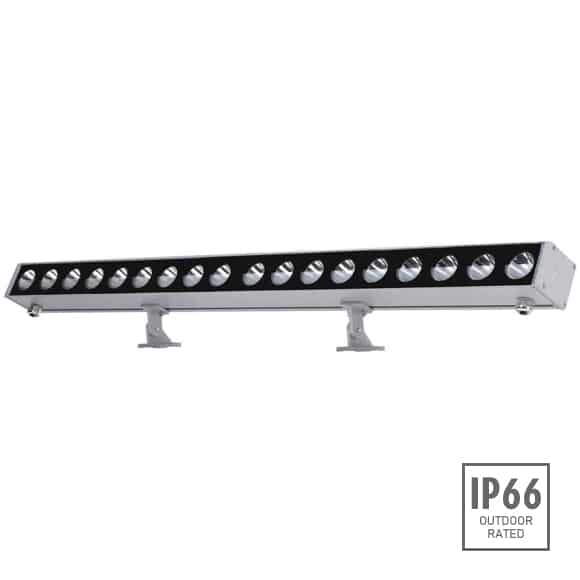

Outdoor Linear Facade Wall Washer - JRL7-18R

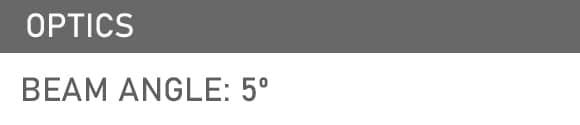

Outdoor linear wall washer with powder coated housing. 39.6W power, 5⁰ beam, CC/DMX512 control with single CCT. These lights come with IP66 protection. These fixtures have a life span of 70,000 burning hours and are available in symmetric & asymmetric beam. Available in 39.6W with an output of 1815 lumens.
Lighting Designers & Architects can use these fixtures to create fabulous nighttime aesthetics, accessibility, security, public landscapes & facade lighting. These lights are highly useful in highlighting walls, structures and various other outdoor lighting projects.

  • Compare us with the best manufacturer before buying our LED outdoor Lighting products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click each of the boxes below and download individual products of your choice

  • Some of the high lights are as follows:

    Material Specifications JRL7-18R

    LED Quantity:
    18Single
    Control Mode:
    CC/DMX512
    Temperature of Working Condition:
    -30⁰~50⁰C
    Humidity of Working Condition:
    10-90%
    LED Lifetime:
    70000h
    Protection Grade:
    IP66

    TECHNICAL DATA

    Model#WattageInput VoltageBeam AngleColorLumance
    JRL7-18R39.6W24V DC5⁰Single1815lm

    IP68 WATERPROOF CONNECTORS

    Outdoor linear wall washer with powder coated housing. 39.6W power, 5⁰ beam, CC/DMX512 control with single CCT. These lights come with IP66 protection. These fixtures have a life span of 70,000 burning hours and are available in symmetric & asymmetric beam. Available in 39.6W with an output of 1815 lumens. Lighting Designers & Architects can use these fixtures to create fabulous nighttime aesthetics, accessibility, security, public landscapes & facade lighting. These lights are highly useful in highlighting walls, structures and various other outdoor lighting projects.
