UNDERWATER LIGHTS

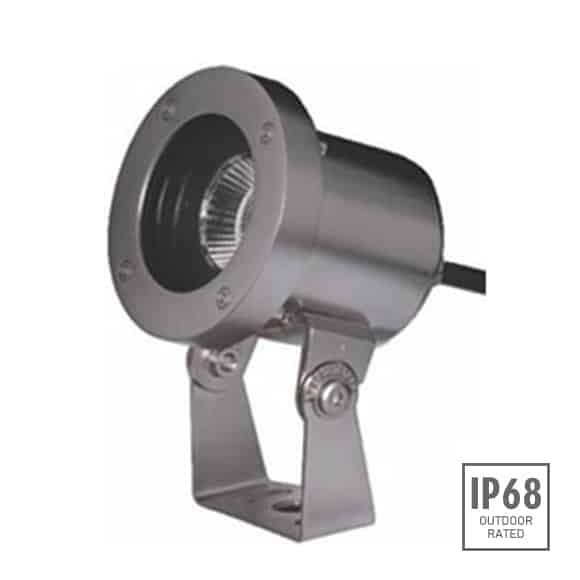

Underwater Lights - R5XA0127


Underwater lights surface mounted for waterbody applications, to highlight a structure inside water. The fixtures are of high grade stainless steel 316 material, suitable for places near salt-water. NICHIA and CREE LED source is used in underwater lights. The lifespan for the fixtures is above 50,000Hrs. With 24VDC the lumen output is high. A narrow and wide beam optics are standard options to chose. Normal color temperatures for underwater lights is 2000K, 3000K and 6000K. RGB and RGBW is also possible with DMX control system.
  • Product & Manufacturing process certifications include UL, CUL, SAA, TUV, CE, BIS, ISO-9001 & ISO -14005
  • Stunning designs, IP68, Symmetrical & Asymmetrical lens, 1W-50W
  • Compare us with the best outdoor LED lighting manufacturer before you buy our products
  • Free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click each of the boxes below and download individual product catalog of your choice

  • Some of the highlights of the products are as follows:

    Material Specifications: R5XA0127


    Front cover & Housing:
    Hard Cromeplated Molding Shaped Stainless Steel SUS 316L#
    Light Window:
    PMMA 8mm
    Gasket:
    Silicon Gasket
    LED:
    NICHIA
    Reflector:
    Optical Reflector, efficiency ≥285%
    LED Driver:
    Constant Voltage Input, Constant Current Output
    PCB:
    Excellent heat conductivity aluminium, coefficientof heat Conductivity ≥2.0w/mk
    Power Cable:
    24V : H07RN-F 2X1.0mm2 L=3.0m
    Application Environment:
    Temperature of water between -20⁰C~40⁰C less than 1 Mtr Depth
    CCT:
    3000K/6000K

    TECHNICAL DATA

    Model#Light Source LENSLens DegreeInput VoltageOperating Current(MA)Consumption (W)Lumance (LM)IK
    R5XA01271x8WR525⁰24V DC24V=34024V=8.1Cool White=674 | Warm White=62508

    IP68 WATERPROOF CONNECTORS

    Underwater LED flood light with optical reflector. CCT of 3000K/6000K, R5 lens 18⁰/25⁰/40⁰, SUS 316L# front cover, NICHIA LED. The fixtures are of high grade stainless steel 316 material, suitable for places near salt-water. NICHIA and CREE LED source is used in underwater lights. The lifespan for the fixtures is above 50,000Hrs. With 24VDC the lumen output is high. A narrow and wide beam optics are standard options to chose. Normal color temperatures for underwater lights is 2000K, 3000K and 6000K. RGB and RGBW is also possible with DMX control system. These fixtures can be submerged in water with less than 1Mtr depth.
