UNDERWATER LIGHTS

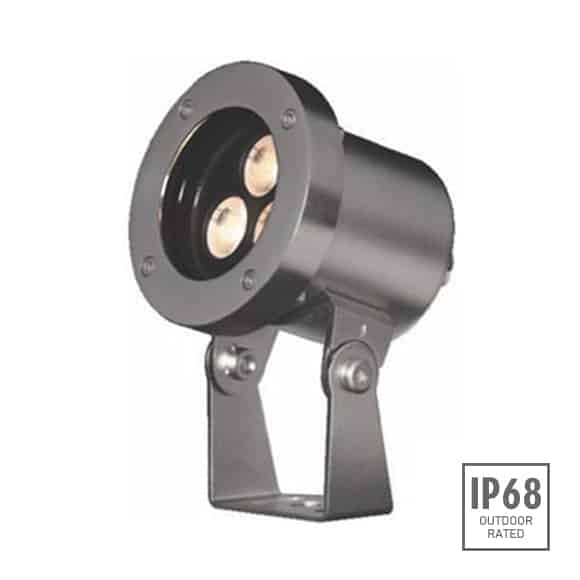

Underwater Lights - B5XA0357
Underwater lights surface mounted for waterbody applications, to highlight a structure inside water. The fixtures are of high grade stainless steel 316 material, suitable for places near salt-water. NICHIA and CREE LED source is used in underwater lights. The lifespan for the fixtures is above 50,000Hrs. With 24VDC the lumen output is high. A narrow and wide beam optics are standard options to chose. Normal color temperatures for underwater lights is 2000K, 3000K and 6000K. RGB and RGBW is also possible with DMX control system.
Some of the highlights of the products are as follows:
Material Specifications: B5XA0357
- Front cover & Housing:
- Hard Cromeplated Molding Shaped Stainless Steel SUS 316L#
- Light Window:
- PMMA 8mm
- Gasket:
- Silicon Gasket
- LED:
- NICHIA
- LED Driver:
- Constant Voltage Input, Constant Current Output
- PCB:
- Excellent heat conductivity aluminium, coefficientof heat Conductivity ≥2.0w/mk
- Power Cable:
- 24V : H07RN-F 2X1.0mm2 L=3.0m
- Application Environment:
- Temperature of water between -20⁰C~40⁰C less than 1 Mtr Depth
- CCT:
- 2000K/3000K/6000K
- Dimmable Support:
- Triac PWM 1-10V Dali
TECHNICAL DATA
Model# | Light Source | LENS | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|
B5XA0357 | 3x2W | B33D | 30⁰ | 24V DC | 24V=320 | 24V=7.7 | Cool White=760 | Warm White=674 | 08 |
