UNDERWATER LIGHTS

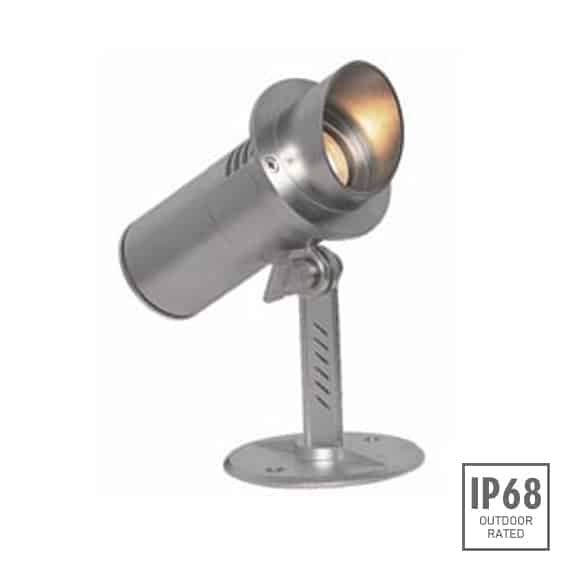

LED Underwater Spot Light - B5AF0158 - Image

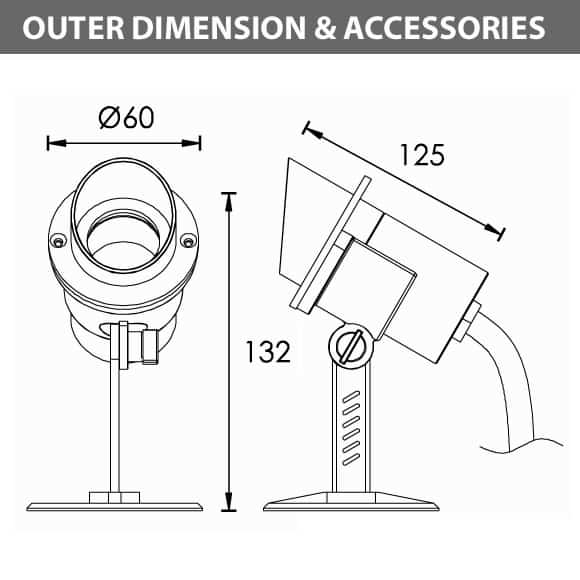

LED Underwater Spot Light - B5AF0158 - Diamension

Product Certification

Underwater Lights - B5AF0158


Underwater lights surface mounted for waterbodies and application which is already existing and had not made provision for lights to be recessed. The fixtures are of high grade stainless steel 316 material with NICHIA and CREE LEDs. With 24VDC the lumen output is high. A narrow and wide beam optics are standard options to chose. Normal color temperatures for underwater lights is 2000K, 3000K and 6000K. RGB and RGBW is also possible with DMX control system.
  • Product & Manufacturing process certifications include UL, CUL, SAA, TUV, CE, BIS, ISO-9001 & ISO -14005.
  • Stunning designs, IP68, Symmetrical & Asymmetrical lens, 1W-50W.
  • Compare us with the best outdoor LED lighting manufacturer before you buy our products.
  • Free installation guide is provided with each product.
  • Check out the fascinating designs, quality, and prices.
  • Click each of the boxes below and download individual product catalog of your choice.

    • Some of the high lights are as follows:

    Material Specifications - B5AF0158


    Front cover & Housing:
    Hard Cromeplated Molding Shaped Stainless Steel SUS 316L#
    Light Window:
    Step Tempered glass. T=7mm
    Waterproof Seal:
    EPDM Gasket
    Lens:
    Separate Optical lens efficiency ≥85%
    LED Driver:
    Constant Voltage Input, Constant Current Output
    PCB:
    Excellent heat conductivity aluminium, coefficientof heat Conductivity ≥2.0w/mk
    Power Cable:
    24V : H07RN-F 2X1.0mm2 L=3.0m
    Application Environment:
    Temperature of water between -20⁰C~40⁰C less than 1 Mtr Depth
    CCT:
    2000K/3000K/6000K
    Dimmable Support:
    Triac PWM 1-10V Dali

    TECHNICAL DATA

    Model#Light Source LENSLens DegreeInput VoltageOperating Current(MA)Consumption (W)Lumance (LM)IK
    B5AF01581x3WB33D30⁰24V DC24V=11024V=2.6Cool White=174 | Warm White=13906
    LED Underwater Spot Light - B5AF0158 - Optics
    LED Underwater Spot Light - B5AF0158 - Color

    IP68 WATERPROOF CONNECTORS

    Socket
    Plug
    Application
    Outer dia
    PRODUCT CATALOG
    SIMILAR PRODUCTS

    Mini Underwater Spot Light with adjustable beam direction. 1x3W LED, waterproof seal, SS body, 2000K/3000K/6000K CCT, 7MM glass. The fixtures are of high grade stainless steel 316 material with NICHIA and CREE LEDs. With 24VDC the lumen output is high. A narrow and wide beam optics are standard options to chose. Normal color temperatures for underwater lights is 2000K, 3000K and 6000K. RGB and RGBW is also possible with DMX control system. Available with Triac/PWM/1-10V/Dali dimming support. These fixtures come with various beam angle options to suit the lighting needs.
