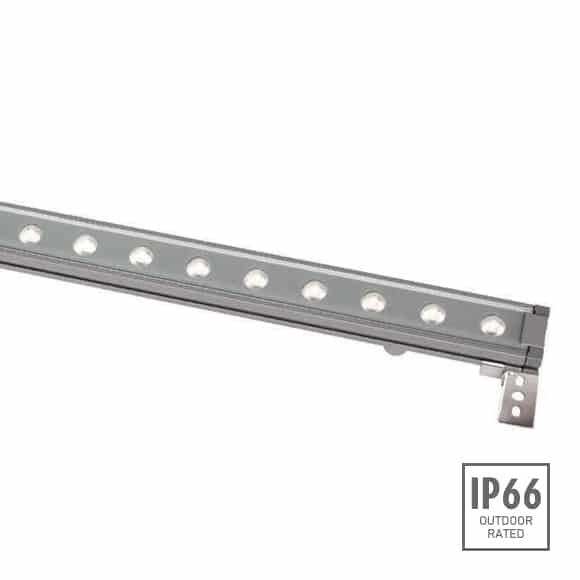

Wall Wash Linear Lighting - S6R1256 | S6R2456
Wall wash linear lighting for high-end landscape architecture, urban lighting, wall highlighter and facade architecture for hotels. Body material used is aluminium die-cast in powder coated colors of sanded grey, black and silver. Adjustable clamps and accessories are SS316 to protect the fixture from corrosion.
Wall washers with high wattages can also light up buildings up to 50 floors high. Color temperatures available are 2000K, 3000K and 6000K. RGB and RGBW can also be provided along with DMX controls. It also helps in highlighting the details and textures on a structure or wall and gives a modern look to the lighting space. Architects and lighting designers use wall washer fixtures for various high end outdoor lighting projects.
Some of the highlights are as follows:
Material Specifications S6R1256 | S6R2456
- Housing:
- Extruded aluminium, Powder coated
- Lens:
- Optical lens, efficiency≥85%
- Light Window:
- Tempered glass T=4mm
- Cable Gland:
- IP68 PG-9 PA66
- Gasket:
- Glass and housing are silicon sealed
- LED:
- OSRAM or NICHIA
- Operating Temperature:
- -20⁰C-40C⁰
- Bracket:
- Hard Chrome plated stainless steel SUS 316L# T=1.5mm
- Power Cable:
- 2XH05RN-F 2X1.0mm2 L=0.5m (Low Voltage) 2XH05RN-F 3X1.0mm2 L=0.5m (High Voltage)
- CCT:
- 2000K/3000K/6000K
- Dimming Support:
- Triac PWM 1-10V Dali
TECHNICAL DATA

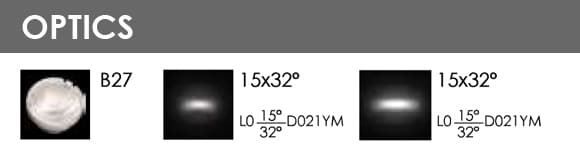

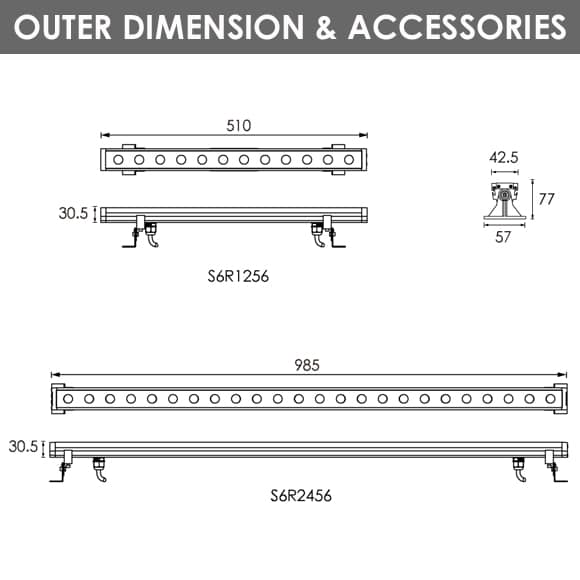

| Model# | Light Source | LENS | Lens Degree | Length(MM) | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|---|---|---|
| S6R1256 | 12x1W | B27 | 15⁰x32⁰ | 510 | 24V | 120V | 240V | 24V=610 | 120V=130 | 240V=65 | 24V=14.5 | 120V=15 | 240V=15 | Cool White = 1331 | Warm White = 1092 | 02 |
| S6R2456 | 24x1W | B27 | 15⁰x32⁰ | 985 | 24V | 120V | 240V | 24V=1229 | 120V=396 | 240V=219 | 24V=29 | 120V=35 | 240V=35 | Cool White = 2590 | Warm White = 2126 | 02 |
IP68 WATERPROOF CONNECTORS
Wall wash linear lighting
Wall wash linear lighting for high-end landscape architecture, urban lighting, wall highlighter and facade architecture for hotels. Placing the fixture closer to the wall will also bring a focused and bright effect. Wall washers with high wattages can also light up buildings up to 50 floors high. The purpose of wall washers is to illuminate vertical surfaces and enhance the architecture.
It also helps in highlighting the details and textures on a structure or wall and gives a modern look to the lighting space. Wall washers are also available with in-built drivers & built-in DMX decoders for easy installation and DMX controls.
Adjustable clamps and accessories are SS316 to protect the fixture from corrosion. These lights are also available in RGB and RGBW. One can also use DMX controls to create infinite lighting effects. Lighting designers and architects can use these high quality LED fixtures in their lighting designs, urban lighting and facade architecture for hotels.
