LED TRACK LIGHT
EST-TSL080X

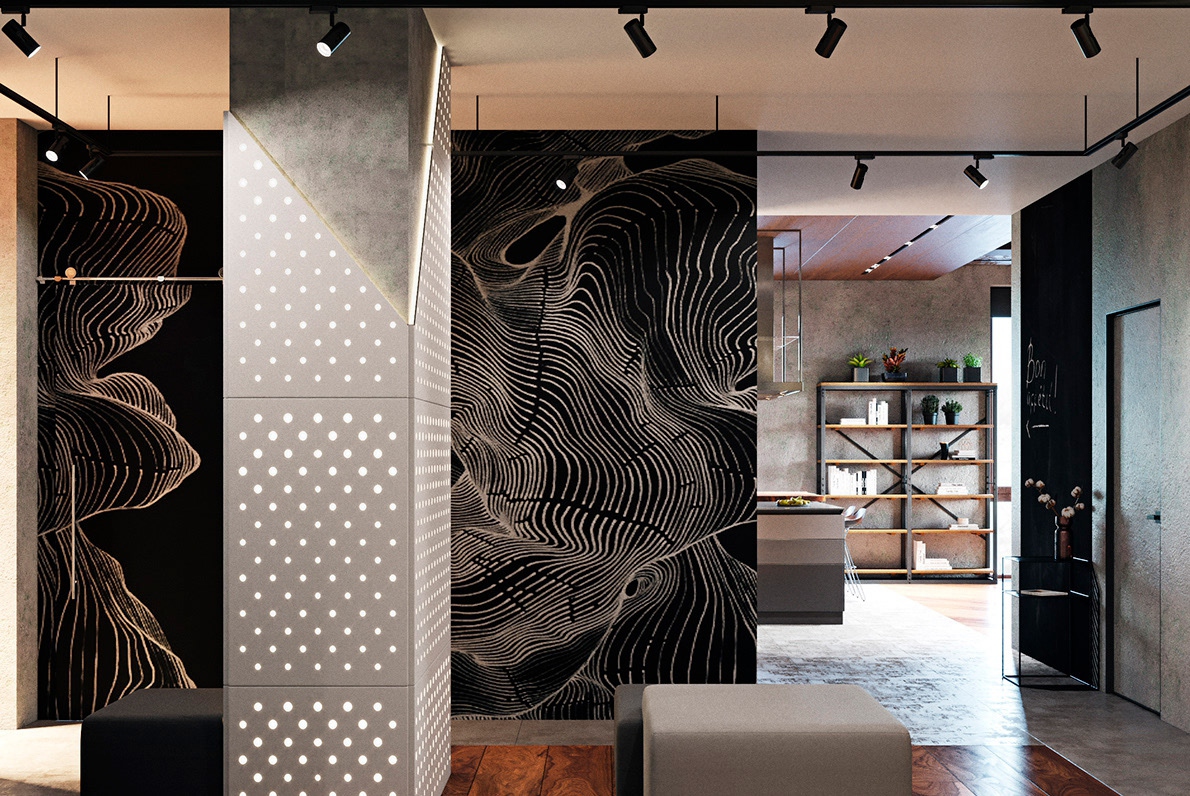

Surface track light for restaurants & hotels with standard CCT's and beam angle options. IP20 protected, 700mA dimming drivers with phase cut, 0-10V & DALI dimming options for desired lighting effect.
Product features
- Lighting Source:
- LED COB
- Colour temperature:
- 2700K/3000K/4000K
- CRI (Ra/R9):
- RA>90/R9>50
- Colour Consistancy:
- SDCM<3
- UGR:
- <16
- IP-Rated:
- IP20
- LED Lifetime:
- 50,000h
- Driver:
- ON/OFF, Phase, 0-10V, Dali
- Options:
- 2-Wire 1-Circuit Track / 3-Wire 1-Circuit Track / 4-Wire 3-Circuit Track / 6-Wire 3-Circuit Dali Track
- Finish:
- White / Black / Titanium
TECHNICAL DATA
Model Number | Power | Beam Angle | Driver parameters | Cut out (mm) | Luminance(LM) |
---|---|---|---|---|---|
EST-TSL080X | 30W | 15°/24°/36° | 36V/700mA | Ø83 | 1750lm |
