RGBW LIGHTS

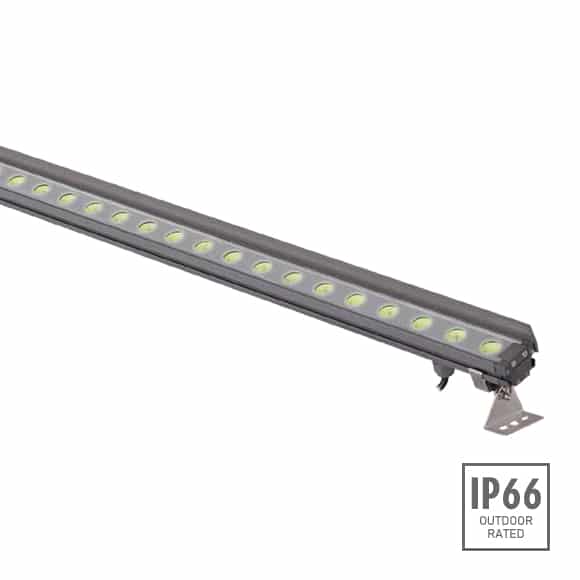

RGBW Lights - B6R0619 | B6R1219 | B6R2419
RGBW LED Wall Washer with multiple length options. 6,12 & 24 LEDs per fixture, dark grey housing, high quality, IP66 rating for outdoor use. Competitively priced, high-quality products with wide range (30+ designs).
Can be used by lighting designers & architects to create fabulous night time aesthetics, accessibility, security and other special social events for private gardens, public landscapes and LED outdoor lighting.
Some of the highlights are as follows:
Material Specifications: B6R0619 | B6R1219 | B6R2419
- Housing:
- Extruded aluminum,poder coated
- Lens:
- Optical lens, efficiency≥85%
- Light Window:
- Step tempered glass.T=4mm
- Gasket:
- Glass and housing are silicone sealed
- LED:
- SMD3535 RGBW 4in1
- Cable Gland:
- IP68 PG-9 PA66
- Bracket:
- Hard chromeplated stainless steel SUS 316L# T=1.5mm
- Power Cable:
- 2XH05RR-F 5X0.75mm2 L=0.5m
- Operating Temperature:
- -20˚C~40˚C
- CCT:
- RGBW
TECHNICAL DATA
Model Number | Light Source | Lens | Lens Degree | Length | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|---|
B6R0619 | 6x2W RGBW 4in1 | B48 | 30⁰ | 265 | 24V DC | 24V=513 | 24V=12.3 | 528 | 02 |
B6R1219 | 12x2W RGBW 4in1 | B48 | 30⁰ | 510 | 24V DC | 24V=1020 | 24V=24.4 | 1082 | 02 |
B6R2419 | 24x2W RGBW 4in1 | B48 | 30⁰ | 985 | 24V DC | 24V=2008 | 24V=48.2 | 2139 | 02 |
