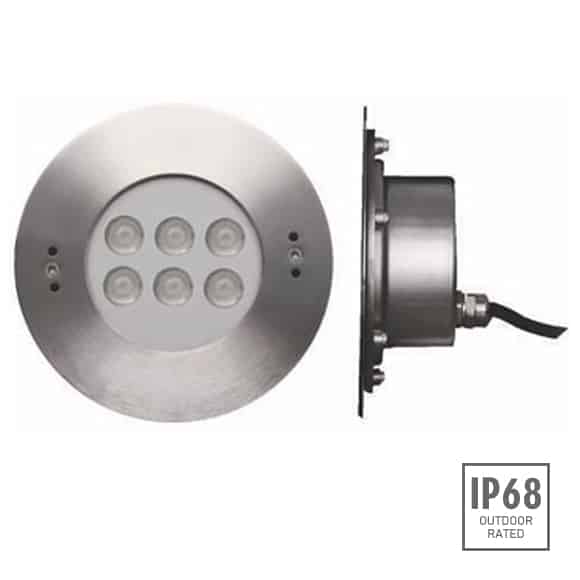

High-grade Outdoor Pool Lights



High-grade Outdoor Pool Lights - B4YB0657
High-grade outdoor pool lights for commercial pool lighting, water features, fountain show and marine lighting fixtures. Stainless steel housing with 8mm step tempered glass. Standard color temperature and beam angles for swimming pool lights are 2000K, 3000K and 6000K with lens of 20º, 25º, 30º, 35º & 45º. Wattages start 2W upwards to 45W.
Swimming pool lights can also be provided with RGB/W color changing LEDs with DMX control systems. Lighting designers use these fixtures to create fabulous nighttime aesthetics for swimming pools. All the lights for pools are made of premium components and we carry only the highest quality products so that you can rest assured your investment will last.
Some of the highlights are as follows:
Material Specifications B4YB0657
- Front cover & Housing:
- Hard Chromeplated Molding Shaped Stainless Steel SUS 316#
- Light Window:
- Step Tempered glass. T=8mm
- Gasket:
- Silicon Gasket
- LED Driver:
- Constant Voltage Input, Constant Current Output
- PCB:
- Excellent heat conductivity aluminium, coefficientof heat Conductivity ≥2.0w/mk
- Power Cable:
- 24V : H07RN-F 2X1.0mm2 L=3.0m
- Application Environment:
- Temperature of water between -20⁰C~40⁰C less than 1 Mtr Depth
- CCT:
- 2000K/3000K/6000K
- Dimmable Support:
- Triac PWM 1-10V Dali
TECHNICAL DATA
Model# | Light Source | LENS | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|
B4YB0657 | 6x2W | B32 | 30⁰ | 24V DC | 24V=700 | 24V=16.8 | Cool White=754 | Warm White=656 | 08 |


IP68 WATERPROOF CONNECTORS




High-grade outdoor pool lights
High-grade outdoor pool lights for commercial pool lighting, water features, fountain show and marine lighting fixtures. These waterproof lights can also be used in fountains to give underwater lighting effects. These lights make the pool more attractive and help in highlighting the shape and texture of the pool. Swimming pool light illuminates the pool area and also covers dark areas.
CCT of 2000k/3000k & 6000k with Triac, PWM ,1-10V & Dali dimming options. Lighting Designers & Architects use these fixtures to create fabulous nighttime aesthetics, Illumination of pool walls, floor etc. Multiple lights can be placed in depending on how big the pool is. The temperature of water between -20⁰C~40⁰C less than 1 Mtr Depth is applicable for this light.
Stainless steel body also makes them rust and corrosion free. Standard color temperature and beam angles for marine lighting fixtures are 2000K, 3000K and 6000K with a symmetric beam. The underwater fixtures can also be provided with RGB/W color changing LED with DMX control systems. One can use these fixtures to highlight water features or for fountain shows.
These underwater lights for the pool come with an ingress protection of IP68. Offers Triac, PWM, 1-10V & Dali dimming options. These lights make them more attractive and help in achieving multi-color ambient light. Swimming pool lights add beauty to the pool and waterbody applications. Color changing lights can also create light shows and textures for architectural lighting elements. Water resorts majorly use these lighting fixtures as they have different sections. Each of them sets a different mood for which lighting is an essential element.
Checkout similar LED underwater lights for commercial pool lighting.
