OUTDOOR WALL LIGHTS

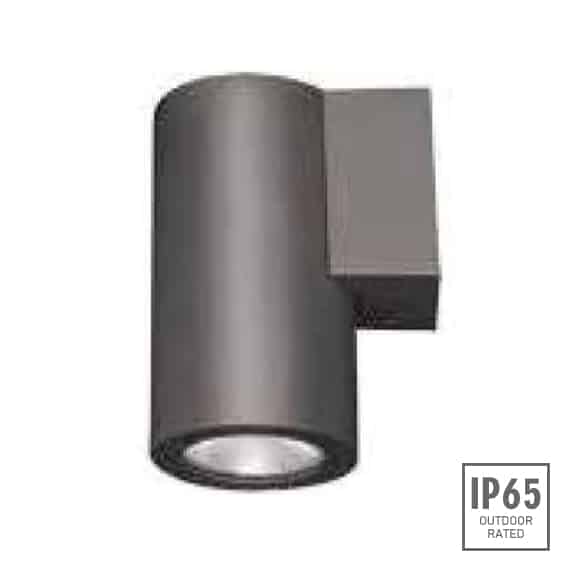

Outdoor Wall Lights - R7BH0170
Cylindrical Outdoor Wall Lights with Extruded aluminium alloy housing. 24V DC |120|240, high lumens, R18 lens, beam angle options. Competitively priced, high-quality products with wide range (30+ designs). The fixture comes with powder coated colors of jet black, white aluminium and grey.
Adjustable clamps to surface mount the fixtures. LED outdoor wall light can be used by Lighting Designers & Architects to create fabulous nighttime aesthetics, sport, and other special social events for private gardens, public landscapes etc.
Some of the highlights are as follows:
Material Specifications: R7BH0170
- Housing:
- Extruded aluminium alloy #6063, powder coating, T=60-80um. Adhesion of ISO class 1/ASTM class 4B
- Reflector:
- Optical reflector, efficiency≥85%
- LED:
- NICHIA
- Operating Temperature:
- -20⁰C-40C⁰
- Power Cable:
- H05RN-F 2x1.0mm2 L=0.3m (Low Voltage) H05RN-F 3x1.0mm2 L=0.3m (High Voltage)
- Weight:
- R7AH0128=1.0Kg R7BH0170=1.9Kg R7CH0173=2.5Kg
- CCT:
- 3000K/6000K
TECHNICAL DATA
| Model# | Light Source | Lens | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Luminance(LM) | IK |
|---|---|---|---|---|---|---|---|---|
| R7BH0170 | 1x18W COB | R18 | 22⁰ | 24V DC | 120 | 240 | 24V=833 | 120V=178 | 240V=96 | 24V=20 | 120V=20 | 240V=21.4 | Cool White = 1684 | Warm White = 1432 | 10 |
IP68 WATERPROOF CONNECTORS
Exterior down lights step lighting fixtures are available in powder coated grey body with high glass pressure capacity. These exterior wall lights come with an option of narrow beam angle which will enhance the architectural characteristics of any project. Our outdoor wall lamp fixtures are also available with in-built drivers for easy installation. One can choose from a range of 40+ designs designed for various architectural wall lighting projects. High quality mounting sleeves and accessories make the installation easy.
These luminaires offer enhanced energy efficient functionality and optimized light output to adequately illuminate stairs and walkways with little or no glare. Plus, they blend into any architecture. So whether you’re lighting up a half landing or stair corner, you can be sure your space will look chic and polished. These fixtures can also be used as brick lights and for various landscape lighting ideas.
Similar Products : Inground Wall Washer
Exterior down lights for modern outdoor wall lighting, landscape lighting, garden lights & deck step lighting with 40+ designs. Our LED wall lights are perfect for illuminating your garden or patio. They come in a variety of styles to suit any décor. Whether you’re looking for recessed wall lights or surface-mounted wall lamps, we have a light to fit your needs.
These outdoor wall lights give your wall a smooth, flush finish. Over 40+ designs of exterior wall lights available for various recessed wall lighting applications. Using them as brick lights can give your wall a beautiful texture. These recessed garden wall lights come in standard color temperatures of 2000K/2700K/3000K/3500K/4000K/5000K & 6000K with multiple dimming options.
Exterior down lights the right modern outdoor wall lighting fixtures for your needs can make all the difference in your garden or on your property. Whether you’re looking for a way to create a cozy atmosphere or increase safety, the right wall lighting can make a big impact. With so many options on the market, it’s important to consider what you need before making a purchase
