OUTDOOR WALL LIGHTS

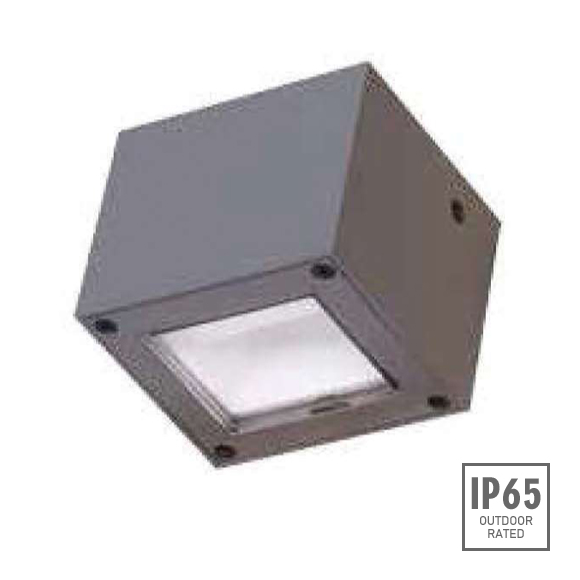

Outdoor Wall Lights - D7AA0137
Single side wall lights with 1x3W NICHIA LED. 155 lumens/watt, IP65, over 30 designs, guaranteed for 3-5 yrs, 6MM PC cover, IK06 rated. Competitively priced, high-quality products with wide range.
LED outdoor wall light can be used by Lighting Designers & Architects to create fabulous nighttime aesthetics, sport, and other special social events for private gardens, public landscapes etc.
Some of the highlights are as follows:
Material Specifications: D7AA0137
- Housing:
- 12# Die-casting dark grey powder coated aluminium T=60-80um. Adhesion of ISO class 1/ASTM class 4B
- Light Window:
- PC T=6mm
- Gasket:
- Tooling shaped seal
- Driver:
- MAin voltage 100V-240V built-in driver
- Operating Temperature:
- -20⁰C-40C⁰
- Power Cable:
- H05RN-F 2x1.0mm2 L=0.3m (Low Voltage) H05RN-F 3x1.0mm2 L=0.3m (High Voltage)
- CCT:
- 2000K/3000K/6000K
TECHNICAL DATA
| Model# | Light Source | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|
| D7AA0137 | 1x3W NICHIA | 24V DC | 120 | 240 | 24V=134 | 120V=36 | 240V=22 | 24V=3.1 | 120V=4.4 | 240V=4.5 | 155 | 06 |
IP68 WATERPROOF CONNECTORS
Designer wall surface light with 1x3W NICHIA LED. 155 lumens/watt, IP65, over 30 designs, guaranteed for 3-5 yrs, 6MM PC cover, IK06 rated. Competitively priced, high-quality products with wide range. LED outdoor wall light can be used by Lighting Designers & Architects to create fabulous nighttime aesthetics, sport, and other special social events for private gardens, public landscapes etc. Single side wall lights with wide beam, 1x3W NICHIA LED, housing color options & 6MM PC cover. These low power wall lights can be used to light up bedrooms or highlight wall structures.
Similar products: Outdoor LED Wall Lights
Designer wall surface light luminaires offer enhanced energy efficient functionality and optimized light output to adequately illuminate stairs and walkways with little or no glare. Plus, they blend into any architecture. So whether you’re lighting up a half landing or stair corner, you can be sure your space will look chic and polished. These fixtures can also be used as brick lights and for various landscape lighting ideas.
Choosing the right modern outdoor wall lighting fixtures for your needs can make all the difference in your garden or on your property. Whether you’re looking for a way to create a cozy atmosphere or increase safety, the right wall lighting can make a big impact. With so many options on the market, it’s important to consider what you need before making a purchase.
Designer wall surface light come in different wattages, beam angles and color temperatures. Wattage for outdoor LED lights starts from 1W to a maximum of 8W. These wattage options make it easy to choose lights depending on the effect. Beam angles offered are narrow to wide beam. Symmetric and asymmetric beams can be provided for uniform lighting effects. Designer wall surface light body material is high grade aluminium die-cast in powder-coated colors of sanded grey, black and silver. Color temperatures available are 2000K, 3000K and 6000K.
Features of these outdoor fixtures are:
- Product & Manufacturing process certifications include UL, CUL, SAA, TUV, CE, BIS, ISO-9001 & ISO -14005
- Stunning designs, IP65, Symmetrical & Asymmetrical lens,1W-8W
- Compare us with the best outdoor lighting manufacturer before buying the products
- Free installation guide is provided with each product
- Check out the fascinating designs, quality, and prices
- Click each of the boxes below and download individual products of your choice
- High quality architectural LED wall lights at economical prices & 3 years warranty
