LED INGROUND LIGHT

LED Inground Light XB2FFR0956 | XB2FFS0956

Outdoor LED inground light for landscape lighting in Germany. Weatherproof housing, IP66-IP67 application, 8mm step glass with inbuilt driver. Inground lights front cover is made of high-grade stainless steel 316 and aluminium AL6063-T5. LED inground lights can be combine with LEDs and lens to create infinite architectural and interior lighting solutions. Architects use these LED fixtures in their projects to create lighting effects for landscape lighting in Germany. The fixtures are versatile which can add a visual impact and also plays a critical role in safety, apart from lighting.
The application of this light fixture can be to enhance architecture and tree clusters. Weatherproof housing with IP66-IP67 rating prevents the fixtures from corrosion. High grade LED chips like Osram, Nichia & CREE which can promise 50,000hrs of light lifetime can be used. High quality internal and external driver, transformer can add advantage to the life of LED Lights.

Some of the features are as follows:

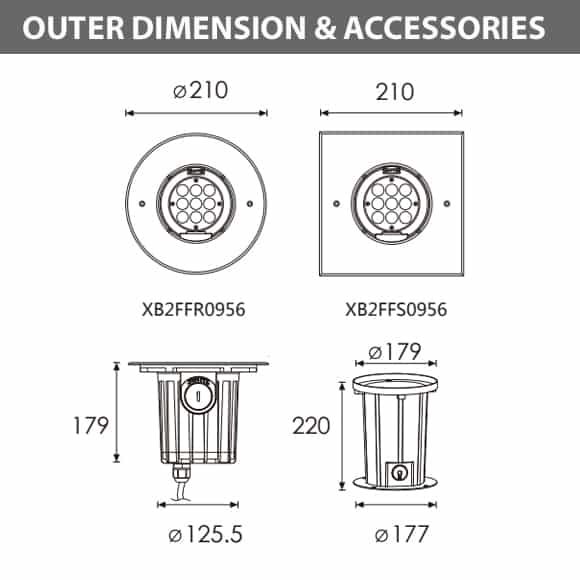

Material Specifications XB2FFR0956 | XB2FFS0956

Front cover & Housing:

Hard chrome plated stainless steel SUS 316L# 12# die-casting grey powder coated aluminum . T=60-80μm. Adhesion of ISO class 1/ASTM class 4B

Glass:

Step tempered glass.T=8mm

Glass pressure capacity:

Full Area=2961kgs

Cable gland:

IP68 PG-9 PA66

Gasket:

Molding shaped seal

LED Driver:

Constant Voltage Input,Constant Current Output

Operating temperature:

-20˚C~40˚C

Power Cable:

H07RN-F 2X1.0mm2 L=0.5m (low voltage) H07RN-F 3X1.0mm2 L=0.5m (high voltage)

Mounting sleeve

ABS Housing with diron base

CCT:

2000K | 3000K | 6000K

Dimmable Support

Triac PWM 1-10V Dali
