Asymmetrical Mini Ground Lights
LED Inground Light C2WDR0157 A
Asymmetrical mini ground lights for garden uplighters, high end pathway lights, home backyard lights and low voltage garden lights. Front cover of the light is made of high-grade stainless steel 316 and aluminium AL6063-T5. Transparent and Frosted covers / diffusers with buried mounting sleeves and accessories help to form uniform lighting. These inground LED lighting fixtures will create a beautiful ambiance and enhance the environment.
The fixtures are versatile which can add a visual impact and also plays a critical role in safety apart from lighting. These fixtures specifically light up elements like pathways, driveways, and landscaping features with minimal visibility of the light itself. Asymmetrical mini inground light is available in single and RGB color with asymmetric lens of 45°*35° beam with IK08 rating & 3mm frosted glass for IP66-IP67 applications.
Some of the features are as follows:
- Front cover & Housing:
- CRI > Aluminum anodized finshing or powder painting
- Lens:
- Optical lens,efficiency≥85%
- Light Window:
- Tempered glass.T=3mm
- LED:
- OSRAM
- PCB:
- Excellent heat conductivity aluminum,coefficient of heat Conductivity≥2.0w/mk
- LED Driver:
- Constant Voltage Input,Constant Current Output
- Operating temperature:
- -20˚C~40˚C
- Power Cable:
- H05RN-F 2X1.0mm2 L=2.0m(low voltage) H05RN-F 3X1.0mm2 L=2.0m(high voltage)
- CCT:
- 2000K/3000K/6000K
Material Specifications C2WDR0157 A

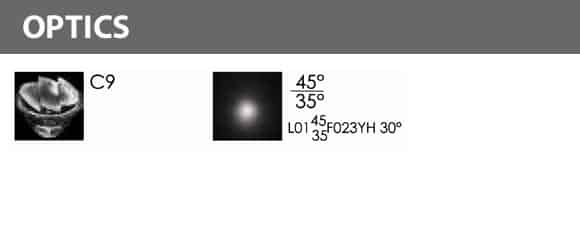

| Model# | Light Source | LENS | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|---|---|
| EST-C2WDR0157 A | 1x2W | C9 | 45°/35° | 24V DC | 120-240V AC | 24V = 105MA | 240V = 28MA | 24V = 2.5 | 240V = 3.1 | Cool White=158 | Warm White=130 | 08 |
IP68 WATERPROOF CONNECTORS
Asymmetrical mini ground lights
Asymmetrical mini ground lights for garden uplighters, high end pathway lights, home backyard lights and low voltage garden lights. Front cover of the light is made of high-grade stainless steel 316 and aluminium AL6063-T5. Transparent and Frosted covers / diffusers with buried mounting sleeves and accessories help to form uniform lighting. These inground LED lighting fixtures will create a beautiful ambiance and enhance the environment.
These fixtures specifically light up elements like pathways, driveways, and landscaping features with minimal visibility of the light itself. This can create a beautiful, unobtrusive view of your overall design. Plus, in-ground lights are available in both LED and traditional options, so you can choose the right option for your project.
If you’re looking for a way to light up your garden or outdoor space, consider low voltage garden lights. Combining these garden uplighters with different beams and wattages can create infinite architectural and outdoor lighting solutions. These inground LED lighting fixtures will create a beautiful ambiance and enhance the environment.
These high end pathway lights are versatile which can add a visual impact and also plays a critical role in safety apart from lighting. The application of this light fixture can be to high light walls, columns, façades. Asymmetrical mini inground light is available in single and RGB color with asymmetric lens of 45°*35° beam with IK08 rating & 3mm frosted glass for IP66-IP67 applications. One can also use these fixtures as home backyard lights.
Check out our range of inground lights
