LED In-ground Light - XB2KFR1258

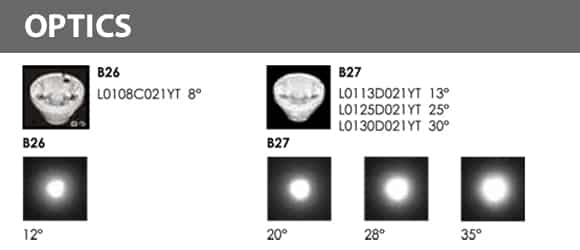

LED In-ground light with 10mm tempered glass & NICHIA LED. CCT available is 3000K/ 6000K in wattage of 12×2.2W with B26 & B27 lens options. These lights come with ingress protection of IP67.

Compare us with the best manufacturer before buying our outdoor LED lighting products

A free installation guide is provided with each product

Check out the fascinating designs, quality, and prices

Click each of the boxes below and download individual products of your choice

Some of the highlights are as follows:

Material Specifications: XB2KFR1258

Housing:

12# die-casting grey powder coated aluminum .T=60-80μm. Adhesion of ISO class 1/ASTM class 4B

Front cover:

Hard chromeplated stainless steel SUS 316L#

Glass:

Step tempered glass.T=10mm

Reflector:

Optical Reflector efficiency≡90%

LED:

NICHIA

Glass pressure capacity:

Full area=5356kgs

Cable gland:

-IP68 PG-13.5 PA66

Gasket:

Molding shaped seal

LED Driver:

Constant Voltage Input,Constant Current Output

Operating temperature:

-20ºC~40ºC

Power cable:

H07RN-F 2X1.5mm²L= 0.5m（low voltage) H07RN-F 3X1.5mm²L= 0.5m（high voltage)

Mounting sleeve:

ABS 106#

CCT:

3000K-6000K
