WALL WASHER

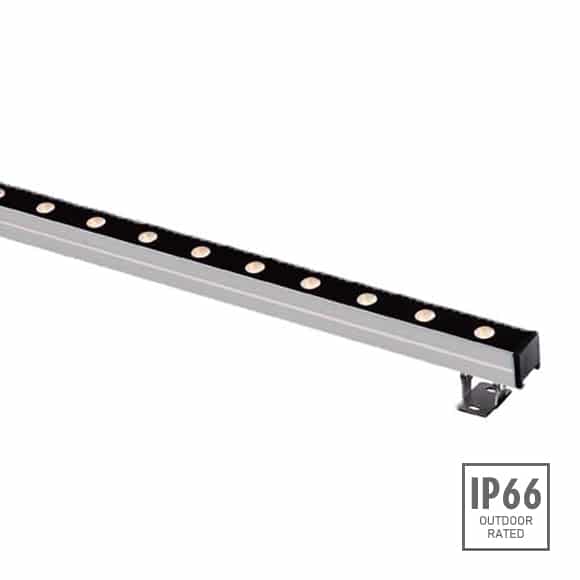

Wall Washer - B6JA1256 | B6JA2456
Wall washer are slim lights with different wattages, beam angles and color temperatures. Wattage start from 6W to maximum of 48W with beam angle of 30 & 40 degree. Body material used is aluminium die-cast in powder coated colors of sanded grey, black and silver. Adjustable clamps and accessories are SS316 to protect the fixture from corrosion.
Color temperatures available are 2000K, 3000K and 6000K. RGB and RGBW can also be provided along with DMX controls. Stunning designs with IP66 rating, Symmetric & Asymmetric lens are options in wall washer lights. Architects and lighting designers use wall washer fixtures for various high end outdoor lighting projects.
Some of the highlights are as follows:
Material Specifications: B6JA1256 | B6JA2456
- Housing:
- Extruded aluminium anodized finishing or Powder coated
- Lens:
- Optical lens, efficiency≥85%
- Light Window:
- Step Tempered glass T=3mm
- Gasket:
- Glass and housing are silicon sealed
- LED:
- OSRAM
- Operating Temperature:
- -20⁰C-40C⁰
- Bracket:
- Hard crome plated stainless Steel SUS 304#
- Power Cable:
- H03VV-F 2X0.75mm2 L=0.25m(low voltage)
- CCT:
- 2000K/3000K/6000K
- Dimmable Support :
- Traic PWM 1-10V Dali
TECHNICAL DATA
| Model# | Light Source | LENS | Lens Degree | Length(MM) | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|---|---|---|
| B6JA1256 | 12x1W | B38 | 30⁰ | 500 | 24V DC | 610 | 14.5 | Cool White = 820 | Warm White = 700 | 03 |
| B6JA2456 | 24x1W | B38 | 30⁰ | 1000 | 24V DC | 1220 | 29 | Cool White = 1660 | Warm White = 1413 | 03 |
IP68 WATERPROOF CONNECTORS
Symmetrical Wall Washer for lighting facades of skyscrapers, historic monuments, government building, railway station, airports and other city skylines with RGB/RGBW/mono color. Wall washing illuminates a vertical surface with uniform brightness and draws attention to the outdoor wall, and can be used to accentuate an entrance, fireplace, or artwork.
There are a few things to keep in mind if you’re considering using outdoor wall washers. First, you’ll need to decide what type of fixture you want. There are two main types of wall washers: linear and grazing. Linear wall washers are designed to evenly illuminate a large area, while grazing fixtures create more of a “spotlight” effect. Wall washers evenly light up large areas and enhance the architecture.
The most popular reason to use an outdoor LED wall washer is to illuminate an architectural facade – typically lighting facades of skyscrapers & city skylines. Symmetrical Wall Washer fixtures are available in RGB/RGBW/mono color and are often used to light up historic monument, government building and railway station.
Check our similar products : Linear Wall Washer
If you’re looking for a way to add some extra light and interest to your home’s exterior, consider outdoor wall washers. These fixtures are designed to evenly illuminate large vertical surfaces, adding a touch of drama and helping to highlight the architecture of your home.
IP65, IP66, IP67 & IP68 outdoor rated, mono or multi-color LED for lighting projects. Wattages start from 6W to a maximum of 120W. Standard beam angles offered are narrow to wide beams from 9, 12, 15, 20, 24, 40, 60. wall wash asymmetric beam angle of 10*30 and 15*32 can be provided as well.
Spacing between the Symmetrical Wall Washer and the surface helps to determine the level of brightness. For a focused, bright effect the fixture should be placed closer to the wall. Wall washers with high wattages can light up buildings upto 50 floors high. The purpose of Symmetrical Wall Washer is to illuminate vertical surfaces and enhance the architecture.
Symmetrical Wall Washer helps in highlighting the details and textures on a structure or wall and gives a modern look to the lighting space. Wall washers are also available with in-built drivers & built-in DMX decoders for easy installation and DMX controls.
