COB LED Spot Lights

COB LED spot lights for resort illumination, luxury outdoor seating, farmhouse lighting, home and garden lighting
LED Landscape Focus & Spot Light - R3PB0171 B - Dimension

Product Certification

COB LED Spot Lights R3PB0171 B


COB LED spot lights for resort illumination, luxury outdoor seating, farmhouse lighting, home and garden lighting. This light is equipped with a single 20W COB LED which can give a lumens output of 1678-1885lumens. Option of base and spike available depending on the application. Whether you’re looking to highlight shrubs in your garden or add some extra light to your landscape, we have a fixture that will fit your needs.

Wide beam angle reflector can cover a wide lighting area and give a balanced light output. IP66 outdoor rated with international quality standards for world class lighting projects. These fixtures are RoHS compliant and highly recommended by lighting designers. Best quality COB LED spot lights with aluminium powder coating & locking gear mechanism for landscape lighting.

  • Compare us with the best manufacturer before buying our LED outdoor lighting products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click each of the boxes below and download individual products of your choice

    • Some of the highlights are as follows:

    Material Specifications R3PB0171 B


    Front cover & Housing:
    12# Die-casting dark grey powder coated aluminium
    Bracket:
    Powder coated aluminium
    Lens Window:
    Tempered glass. T=4mm
    Reflector:
    Optical lens, efficiency ≥90%
    LED:
    NICHIA COB LED
    Power Cable:
    H05RN-F 2X1.0mm2 L=2.0m(low voltage) H05RN-F 3X1.0mm2 L=2.0m(high voltage)
    CCT:
    3000K/6000K

    TECHNICAL DATA

    Model#Light Source LENSLens DegreeInput VoltageOperating Current(MA)Consumption (W)Lumance (LM)IK
    R3PB0171 B1x20WR12100⁰ 24V DC | 120 | 24024V=960 | 120V=205 | 240V=10524V=23 | 120V=24 | 240V=24.4Cool White=1885 | Warm White=167808

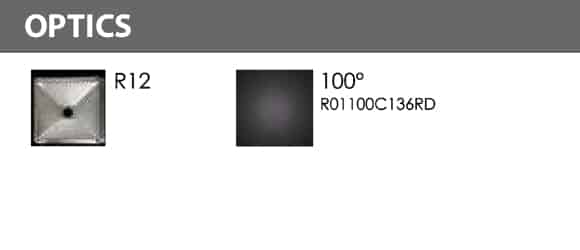

    LED Landscape Focus & Spot Light - R3PB0171 B - Optics
    LED Landscape Focus & Spot Light - Color - B3AB0157

    IP68 WATERPROOF CONNECTORS

    Socket
    Plug
    Application
    Outer dia
    PRODUCT CATALOG
    SIMILAR PRODUCTS

    COB LED spot lights

    COB LED spot lights for resort illumination, luxury outdoor seating, farmhouse lighting, home and garden lighting. This light is equipped with a single 20W COB LED which can give a lumens output of 1678-1885lumens. Option of base and spike available depending on the application. Wide beam angle reflector can cover a wide lighting area and give a balanced light output.

    Wattages as low as 2W can be provided with a maximum of 50W. These spike lights perfectly illuminate garden shrubs & trees. Applications of these lights also include garden lighting, park lighting, residential lighting, square lighting and other outdoor lighting. We offer a wide variety of outdoor spot lights, perfect for any application.

    Whether you’re looking to highlight shrubs in your garden or add some extra light to your landscape, we have a fixture that will fit your needs. If you’re looking for an LED light that can effectively ‘flood’ a dark outdoor space, then check out our selection of LED spike lights. These lights also feature a strong and bright LED light that can span up to 120 degrees, making them ideal for illuminating any outdoor space.

    IP66 outdoor rated with international quality standards for resort illumination, luxury outdoor seating and farmhouse lighting. These fixtures are RoHS compliant and highly recommended by lighting designers. Best quality COB LED spot lights with aluminium powder coating & locking gear mechanism for landscape lighting. These fixtures are also applicable for home and garden lighting.

    Check out more options for spot lights
