Recessed Garden Lights

Recessed garden lights for garden walkways and pathways. Applications include lighting for brick walkway, floor lighting and runways
4E2CD0617 - Dia

Product Certification

Recessed Garden Lights - 4E2CD0617


Recessed garden lights for garden walkways and pathways. Applications include lighting for brick walkway, floor lighting and runways. The housing is Die-casting powder coated aluminum. These lights come with an ingress protection of IP67. Offer Triac, PWM, 1-10V & Dali dimming options. Standard color temperature for drive over lights are 2000K, 3000K and 6000K. SMD3030 LED is used with Constant Voltage Input driver.

Modern look, rust & corrosion-proof fixtures with compact design. Ground lights are also a great way to improve the safety and visibility of your driveway, and can also add a touch of style. Recessed garden lights have a variety of color temperatures available, you can certainly find the perfect light to suit your needs. With IP67 rating, these fixtures are also protected from rain water.

  • Compare us with the best manufacturer before buying our LED outdoor lighting products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click the box below to download individual product ecatalog and check out other products of your choice

    • Some of the highlights are as follows:

    Material Specifications 4E2CD0617


    Housing:
    12# Die-casting dark grey powder coated aluminum. T=60-80μm.Adhesion of ISO class 1/ASTM class 4B
    Front Cover:
    Hard chromeplated stainless steel SUS 316#
    Load Capacity:
    >2000kg
    Cable Gland:
    IP68 PG-9 PA66
    Gasket:
    Molding shaped silicone seal
    LED Driver:
    Constant Voltage Input,Constant Current Output
    Operating Temperature:
    -20˚C~40˚C
    Power Cable:
    H05RN-F 2X1.0mm2 L=0.5m(low voltage) H05RN-F 3X1.0mm2 L=0.5m(high voltage)
    Mounting Sleeve:
    ABS 015#
    Dimmable Support:
    Triac PWM 1-10V Dali
    CCT:
    2000K/3000K/6000K

    TECHNICAL DATA

    Model NumberLight SourceInput VoltgeOperating Current(MA)Consumption (W)IK
    4E2CD0617SMD3030 6×0.5W24V DC | 120 | 24024V=124 | 120V=57 | 240V=3324V=2.9 | 120V=3.9 | 240V=410

    IP68 WATERPROOF CONNECTORS

    Socket
    Plug
    Application

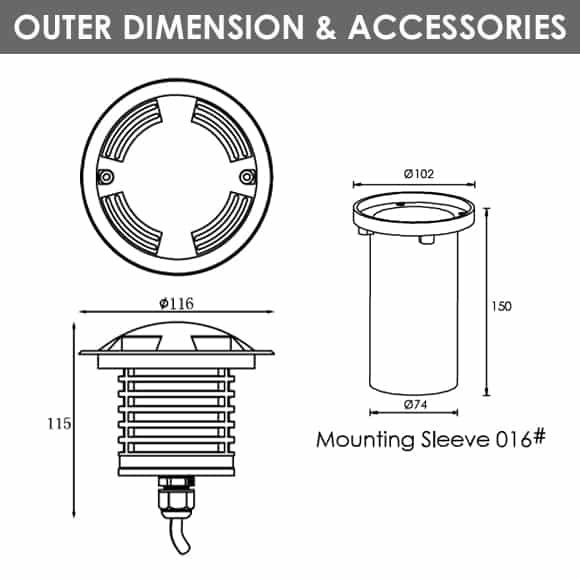

    Outer dia
    PRODUCT CATALOG
    SIMILAR PRODUCTS

    Recessed garden lights

    Recessed garden lights for garden walkways and pathways. Applications include lighting for brick walkway, floor lighting and runways. Material of these fixtures are robust and are made of die-cast aluminium body with powder coated colors. Front cover of the light is of high-grade stainless steel 316 to make it rust or corrosion free. These lights come with an ingress protection of IP67. Offer Triac, PWM, 1-10V & Dali dimming options. Standard color temperatures for drive over lights are 2000K, 3000K and 6000K. With multiple wattage options, one can certainly get the desired lighting effect.

    Lighting for brick walkway, driveways & pavements with CCT options. Modern look, rust & corrosion-proof fixtures with compact design. If you’re looking for a way to add some extra light to your garden walkways and pathways, consider installing ground lights. Ground lights are also a great way to improve the safety and visibility of your driveway, and can also add a touch of style. Positioning ground lights on either side of the driveway is also a great way to guide parking and walking at night.

    Recessed garden lights have a variety of color temperatures available, you can certainly find the perfect light to suit your needs. Our selection of products come with BIS certification. These walkover lights can also act as a guide light at night. One of the major applications can be for floor lighting and runways. These are strong, rust & corrosion-proof fixtures with a compact design which will also give a modern look to your exteriors. With IP67 rating, these fixtures are also protected from rain water.

    Recessed garden lights are also available in a variety of wattages, colors, and styles to suit any need. Made from durable materials, they’re built to last. They have a high glass pressure capacity and can withstand extreme temperatures. Standard color temperatures of 2000K/3000K/3500K/4000K/5000K & 6000K are available. Product & Manufacturing process certifications include UL, CUL, SAA, TUV, CE, BIS, ISO-9001 & ISO -14005.
    Buried parking lights come with Triac, PWM, 1-10V & Dali dimming support with an option of in-built drivers to suit any project needs. These fixtures are also available in over 20+ designs. These are high quality fixtures with wattages starting from 0.8W to a maximum of 4W. These fixtures emit light in single, double and quadrangular sides. One can use a combination of these fixtures to light up pavements or parking lots.
    Check out our range of outdoor architectural lights for project lighting solutions.
